Bearings Model

s2000-series

Jones Mounted Product Line

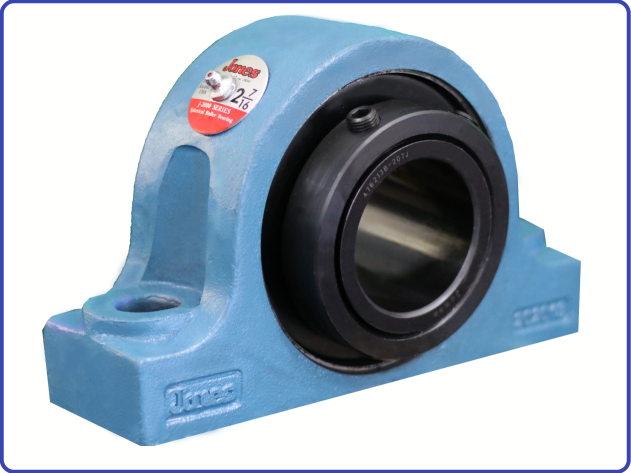

S2000 series

Jones S2000 Series Mounted Roller Bearings come completely assembled and ready to mount on the shaft. The Self-Aligning Feature allows for quick and easy installation without the need to clean or align housings. They come standard in expansion or non-expansion styles up to 6″ shaft size available off the shelf.

e-series

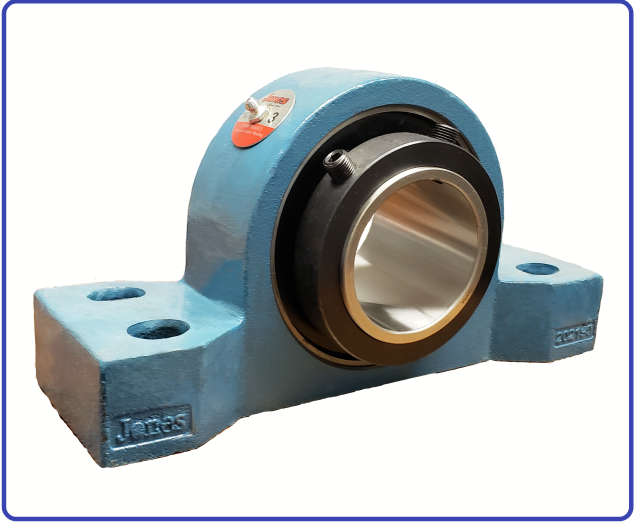

E Series

Type E series

The Jones S2000 line is available in mounting styles compatible with the Industry standard “E” Type Housing arrangements. They carry the same Self-Aligning features found in the Standard S2000 Series, and utilize up to date Spherical Bearing designs found in all modern Roller Bearings.

saf-series

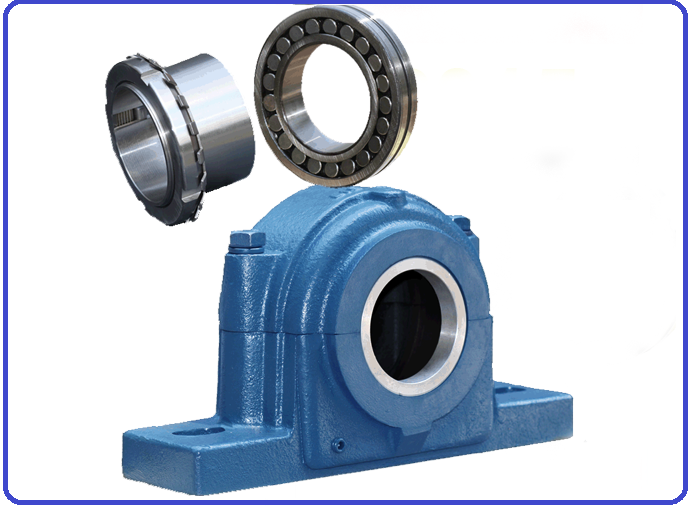

Split Housing SAF

SAF series

The SAF Cast Iron split pillow blocks accommodate self-aligning spherical roller bearings which use adapter mounting to the shaft. SAF housings are available for shaft sizes ranging from 1-3/16” to 8″ and offer a choice of two or four bolt base mounting. Their design accommodates grease or oil lubrication. LER/LOR triple ring seals are supplied




heavy-duty-pb1000

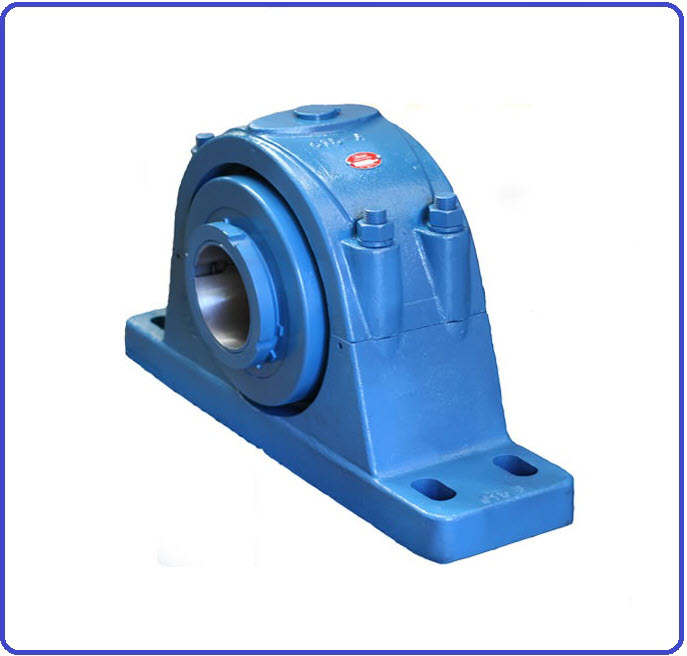

Heavy Duty PB1000

Jones 1000 series

Split Extra Heavy Duty Housing with internal cartridge assembly . Tapered adapter sleeve mounting. The Heavy Duty Pillow Block cannot be compared with other pillow blocks of ordinary design and construction. The superiority of the Jones PB1000 Series is particularly apparent when the operating conditions are unusually severe

jyr-2000-5000

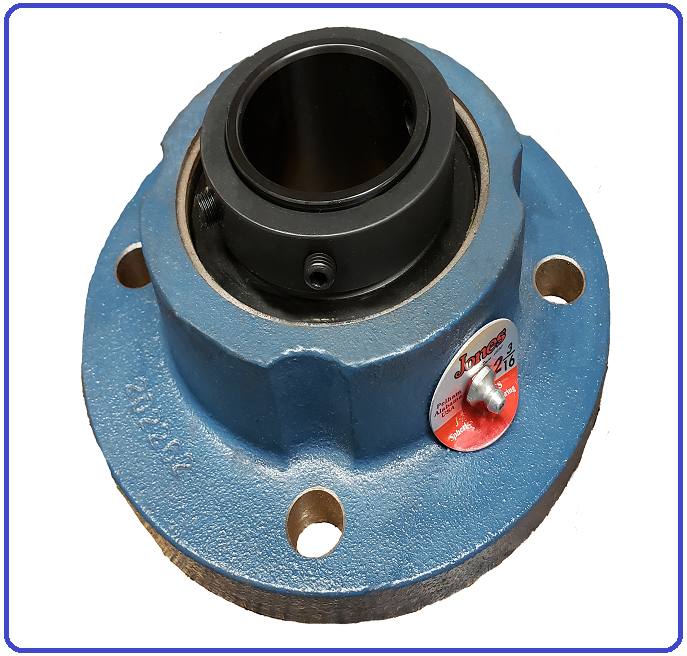

JYR-2000/5000

Flanged Bearings

  • Fully self-aligning
  • Fixed and expansion units

jyrp-piloted-flanges

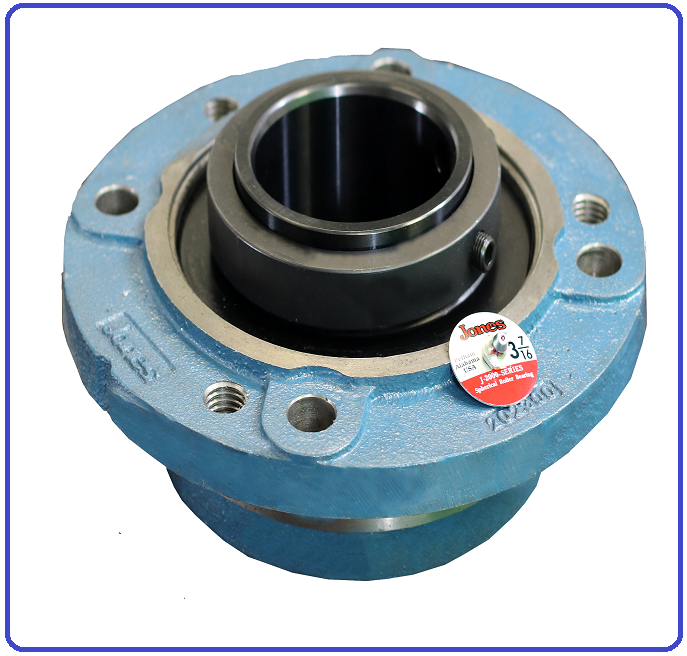

JYRP-2000/5000

Piloted Flanged Bearings

  • Fully self-aligning
  • Fixed and expansion units





saf

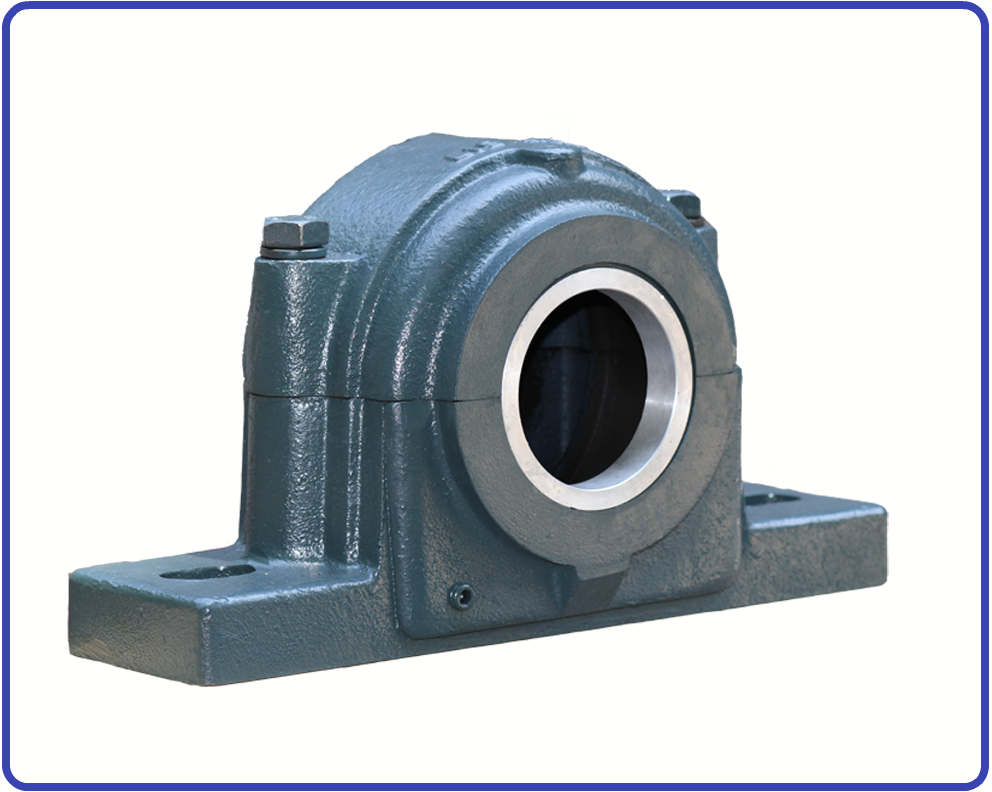

SAF-2250

Split Pillow Blocks

  • Cast iron two-piece housing
  • LER triple ring seal
  • Held or free bearing

jt-takeup

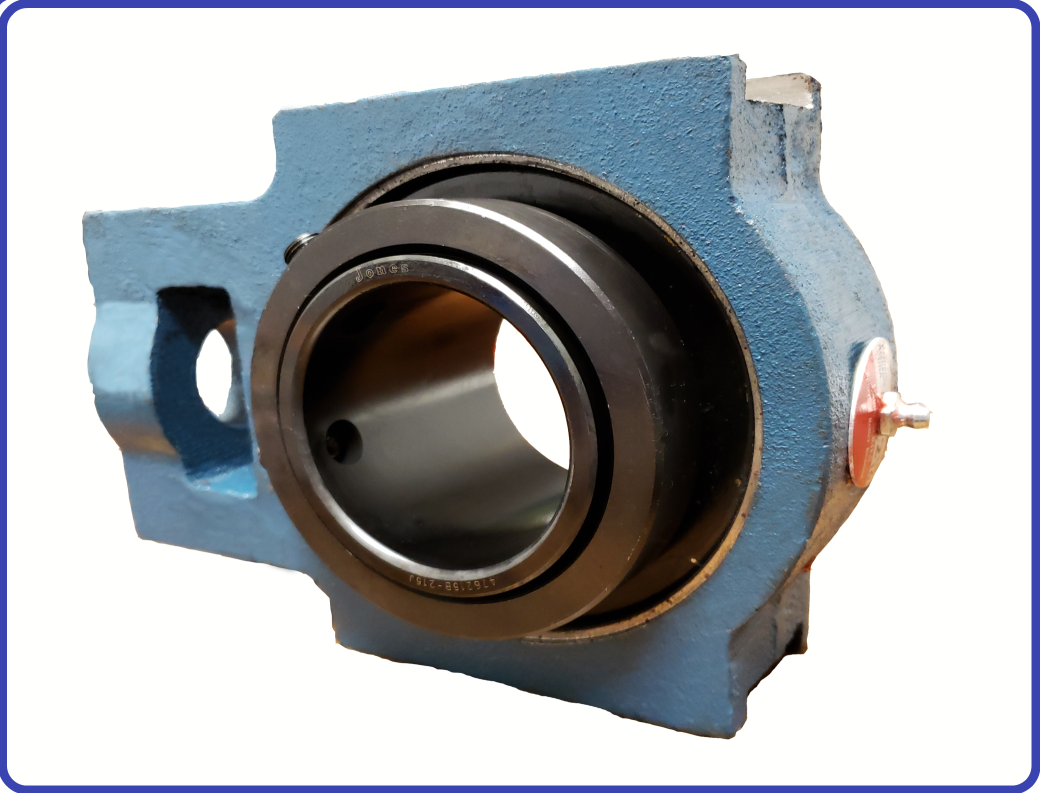

JT-2000/JT-5000

Takeup Blocks

  • Fixed and expansion units
  • Takeup blocks on this page may be used with JHT, JFT, JAT, JGT or CU frame

jef-flanges

JEF-2000

Heavy Duty Boot-End Takeups

  • Sliding sealing plate with felt backing
  • Welded steel frame




heavy-duty-spherical

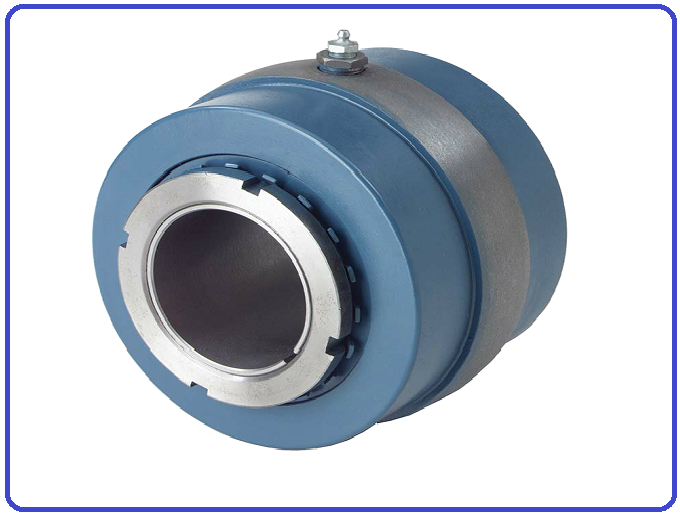

Spherical Units

With double row tapered roller bearings

Manufacturers & machine builders sometimes desire to incorporate anti-friction bearing units into the design of their product, using their frame for the bearing support.
The internal unit as used in the takeup block is self-contained and can be used in this manner. The standard spherical ring on the housing allows manufacturers to design around the Jones Spherical Unit.

steel-pillow-blocks

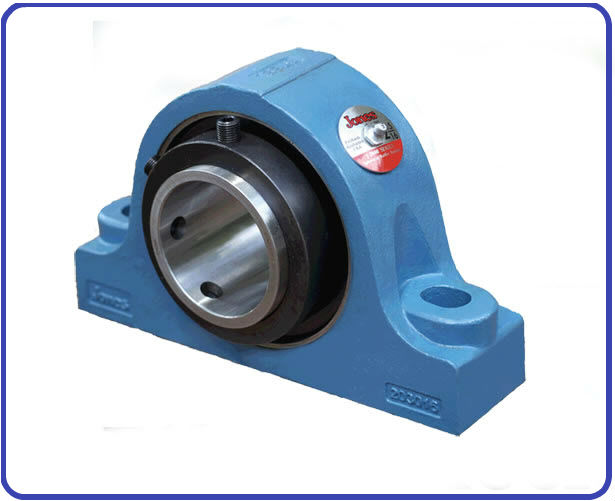

Steel Pillow Blocks

Pillow Blocks

  • Cast Steel Housing


Get In Touch With Us...!

Jones Bearing Company is a manufacturer of Mounted Spherical Roller Bearings and Take-Ups, including S2000, Type E, SAF, Flange, and Piloted Flange Types.
